BSI offers all models in a conventional hard-gib preload design which exhibits an improved cantilevered (offset) load capaicity(see graph).

All units are constructed of black anodized aluminum slide bodies with hardened balls and raceways. This proven design provides high level accuracy and excellent positioning repeatability. Ideal for the most demanding applications.


MODEL
TRAVEL (in.)
W
L
A
B
D
E
LOAD ( lbs.)
PRICE
22-1A
1.0
2.0
2.0
1.000
1.000
1.10
1.00
20
$101.00
23-2A
2.0
2.0
3.0
2.000
1.000
1.10
1.00
30
$114.00
24-3A
3.0
2.0
4.0
3.000
1.000
1.10
1.00
40
$126.00
34-2A
2.0
3.0
4.0
3.000
2.000
2.10
2.00
30
$136.00
35-3A
3.0
3.0
5.0
4.000
2.000
2.10
2.00
40
$149.00
36-4A
4.0
3.0
6.0
5.000
2.000
2.10
2.00
50
$166.00
37-5A
5.0
3.0
7.0
6.000
2.000
2.10
2.00
60
$180.00
38-6A
6.0
3.0
8.0
7.000
2.000
2.10
2.00
70
$194.00

Prices subject to change without notice.

    QUANTITY DISCOUNTS AVAILABLE:

     Quantity:    10-14    15-24   25-49    50-93    100+

     Discount:    1.5%     3%       5%        7.5%     15%

     BSI will gladly modify mounting holes to your specification for an additional fee.

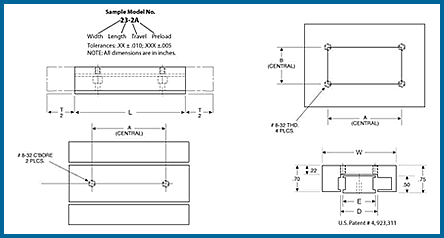

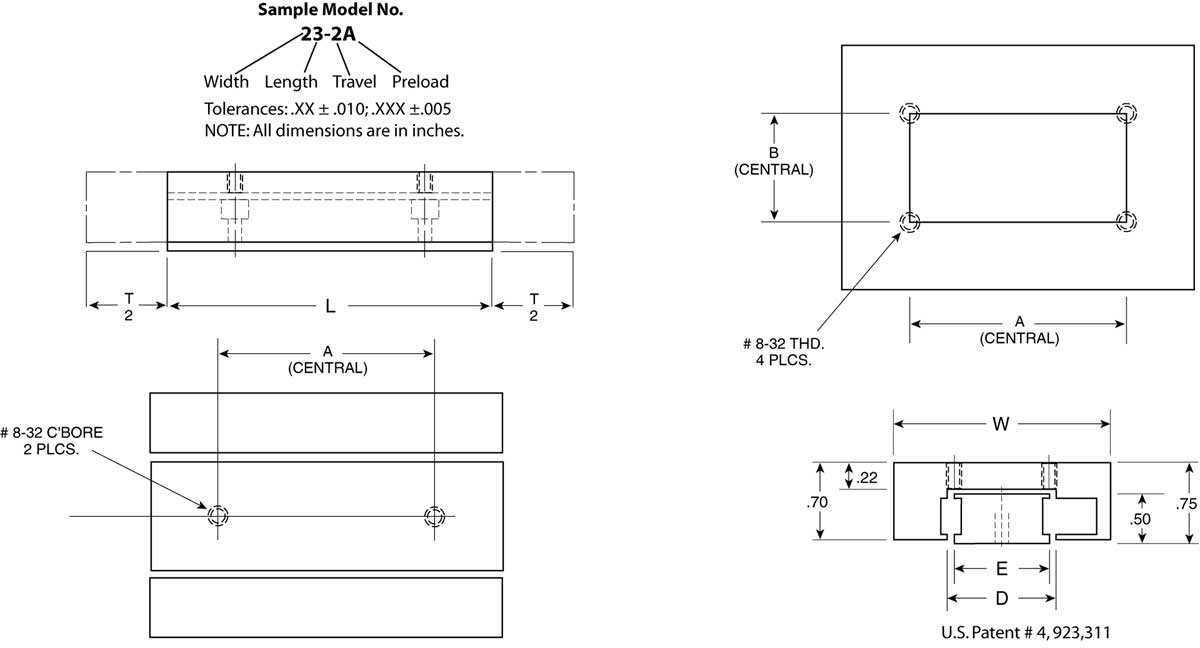

     Please click on image below for enlarged view.
