Of all linear bearing slide types, the ball slide has the reputation as being the least tolerant to impact and shock loads.

BSI’s C Series is different. BSI’s compliant preload design uses hardened stainless steel, rod-type raceways and a line of balls, but also incorporates a shock-absorbing, elastomer back-up gib. This approach provides even and continuous preload, while effectively minimizing problems related to impact and shock, over the lifetime of the bearing. At a very reasonable cost.


MODEL
TRAVEL (in.)
W
L
A
B
D
E
LOAD ( lbs.)
PRICE
22-1C
1.0
2.0 2.0 1.000 1.000 1.10 1.00
20
$  86.00
23-2C
2.0
2.0 3.0 2.000 1.000 1.10 1.00
30
$  90.00
24-3C
3.0
2.0 4.0 3.000 1.000 1.10 1.00
40
$  95.00

34-2C
2.0
3.0 4.0 3.000 2.000 2.10 2.00
30
$105.00
35-3C
3.0
3.0 5.0 4.000 2.000 2.10 2.00
40
$111.00
36-4C
4.0
3.0 6.0 5.000 2.000 2.10 2.00
50
$122.00
37-5C
5.0
3.0 7.0 6.000 2.000 2.10 2.00
60
$132.00
38-6C
6.0
3.0 8.0 7.000 2.000 2.10 2.00
70
$158.00

Prices subject to change without notice.

     QUANTITY DISCOUNTS AVAILABLE:

     Quantity:    10-14    15-24   25-49    50-93    100+

     Discount:    1.5%     3%       5%        7.5%     15%

     BSI will gladly modify mounting holes to your specification for an additional fee.

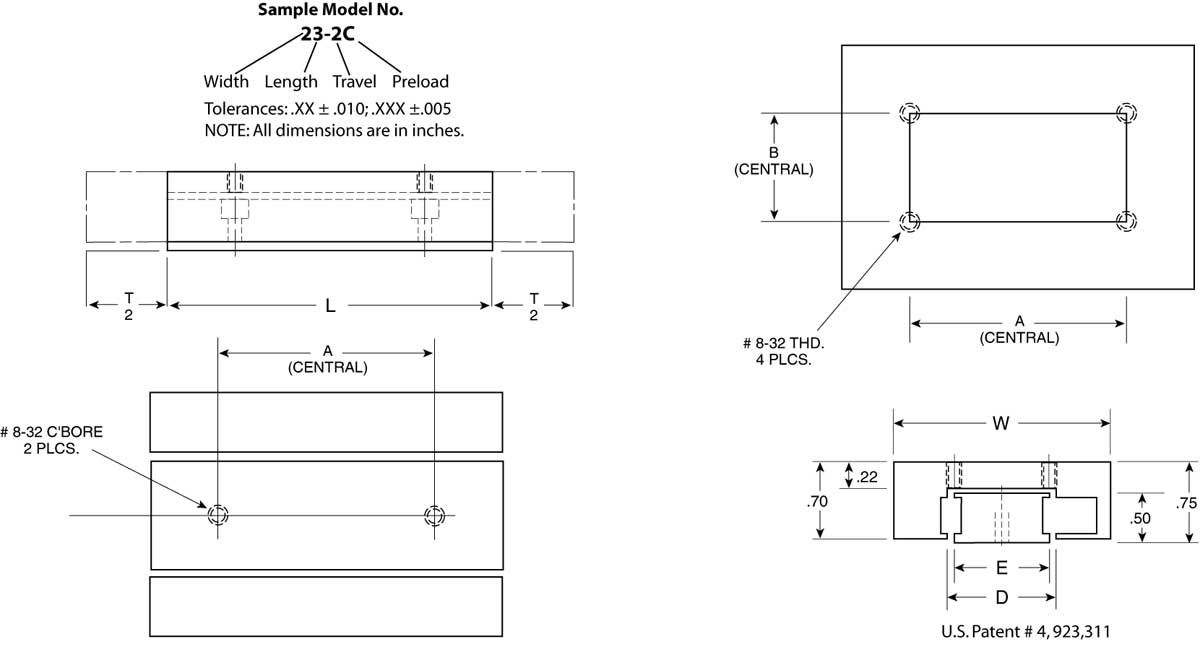

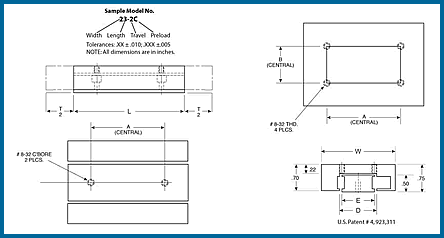

     Please click on image below for enlarged view.
