Conventional ball slide designs represent a trade-off between the smooth slide travel that improves durability and the stiffer, preloaded construction that improves accuracy.

BSI now eliminates this trade off with our new L Series ball slides that are preloaded at the factory. The slide is self-balancing: there are no mechanical adjustments to shorten slide life. It's built for reliabililty and economy under the toughest conditions.


MODEL
TRAVEL (in.)
W
L
A
B
D
E
LOAD ( lbs.)
PRICE
22-1L
1.0
2.0
2.0
1.000
1.000
1.10
1.00
20
Call
23-2L
2.0
2.0
3.0
2.000
1.000
1.10
1.00
30
Call
24-3L
3.0
2.0
4.0
3.000
1.000
1.10
1.00
40
Call
34-2L
2.0
3.0
4.0
3.000
2.000
2.10
2.00
30
Call
35-3L
3.0
3.0
5.0
4.000
2.000
 2.10
2.00
40
Call
36-4L
4.0
3.0
6.0
5.000
2.000
2.10
2.00
50
Call
37-5L
5.0
3.0
7.0
6.000
2.000
2.10
2.00
60
Call
38-6L
6.0
3.0
8.0
7.000
2.000
2.10
2.00
70
Call

Prices subject to change without notice.

    QUANTITY DISCOUNTS AVAILABLE:

     Quantity:    10-14    15-24   25-49    50-93    100+

     Discount:    1.5%     3%       5%        7.5%     15%

     BSI will gladly modify mounting holes to your specification for an additional fee.

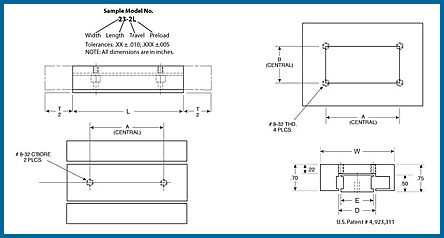

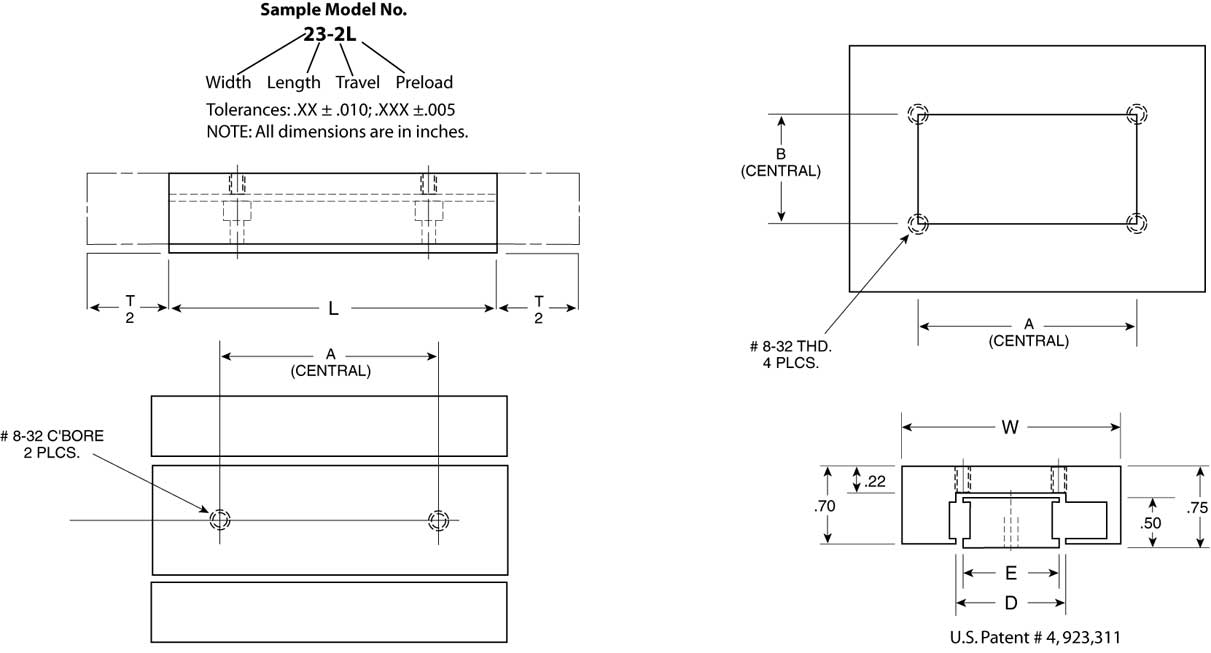

     Please click on image below for enlarged view.
